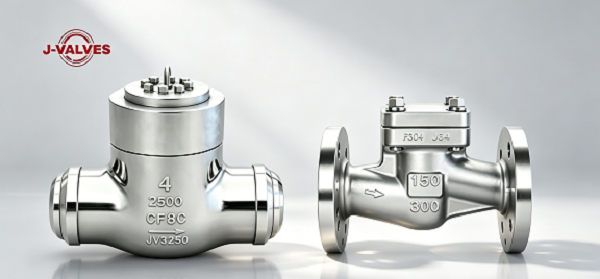

Lift Check Valve Vs Swing Check Valve: Key Technical Differences

Check valves are essential components in industrial piping systems, designed to prevent reverse flow and protect pumps, compressors, and process equipment. Among the most commonly used designs are lift check valves and swing check valves. Although both serve the same basic function, their internal structures, flow characteristics, and application suitability are significantly different.

Understanding these technical differences helps engineers choose the correct valve type for specific operating conditions.

What Is a Lift Check Valve?

A lift check valve uses a disc or piston that moves vertically inside the valve body. When fluid flows in the correct direction, pressure lifts the disc off the seat, allowing flow passage. When flow stops or reverses, gravity and back pressure force the disc back onto the seat to prevent backflow.

Main Features

• Vertical disc movement

• Tight sealing performance

• Suitable for high-pressure systems

• Typically installed in horizontal pipelines

Lift check valves are commonly used in steam, gas, and high-pressure liquid applications.

What Is a Swing Check Valve?

A swing check valve uses a hinged disc that swings open with forward flow and closes when reverse flow occurs.

The disc rotates around a pivot point, creating a simpler flow path with lower resistance.

Main Features

• Swing-type disc movement

• Lower pressure drop

• Suitable for large pipelines

• Available for horizontal and vertical installation

Swing check valves are widely used in water treatment, oil pipelines, and low-pressure industrial systems.

Key Technical Differences

Flow Performance Comparison

Lift Check Valve

Lift check valves create more flow resistance because the fluid changes direction inside the valve body. However, they provide more stable shutoff performance in high-pressure systems.

They are ideal for:

• Steam systems

• High-pressure process lines

• Gas applications

Swing Check Valve

Swing check valves allow smoother flow with minimal turbulence and lower pressure loss.

They perform well in:

• Large-diameter pipelines

• Water distribution systems

• Low-pressure fluid transport

Sealing Capability

Lift check valves generally offer tighter sealing because the disc seats directly onto the sealing surface with controlled vertical motion.

Swing check valves may experience slight leakage under low back-pressure conditions due to the swinging disc design.

For applications requiring strict backflow prevention, lift check valves are often preferred.

Installation Considerations

Lift Check Valve Installation

• Usually installed horizontally

• Requires correct flow orientation

• Sensitive to improper alignment

Swing Check Valve Installation

• More flexible installation options

• Suitable for larger pipe diameters

• Easier integration into existing systems

Maintenance and Durability

Swing check valves have fewer moving parts and a simpler structure, making maintenance easier and more cost-effective.

Lift check valves provide excellent sealing but may require more precise maintenance due to internal guide components.

Common Material Options

Both valve types are available in materials such as:

• Carbon steel

• Stainless steel

• Duplex stainless steel

• Bronze alloys

• Alloy steel

Material selection depends on pressure, temperature, and corrosion conditions.

Typical Industrial Applications

Lift Check Valves

Commonly used in:

• Steam systems

• Petrochemical plants

• High-pressure process piping

• LNG and gas systems

Swing Check Valves

Widely used in:

• Water treatment facilities

• Marine systems

• Oil transportation pipelines

• Cooling water systems

Which Valve Type Is Better?

There is no universal answer. The best choice depends on system requirements.

Choose Lift Check Valves When:

• Tight sealing is critical

• High-pressure operation is required

• Reverse flow protection must be highly reliable

Choose Swing Check Valves When:

• Low pressure drop is important

• Large pipeline flow is required

• Maintenance simplicity is preferred

Conclusion

Lift check valves and swing check valves each offer unique technical advantages for industrial piping systems. Lift check valves provide stronger sealing performance and better suitability for high-pressure applications, while swing check valves deliver lower flow resistance and easier maintenance.

Careful evaluation of flow conditions, pressure requirements, installation layout, and maintenance expectations helps ensure the correct valve selection for long-term operational reliability and system efficiency.
